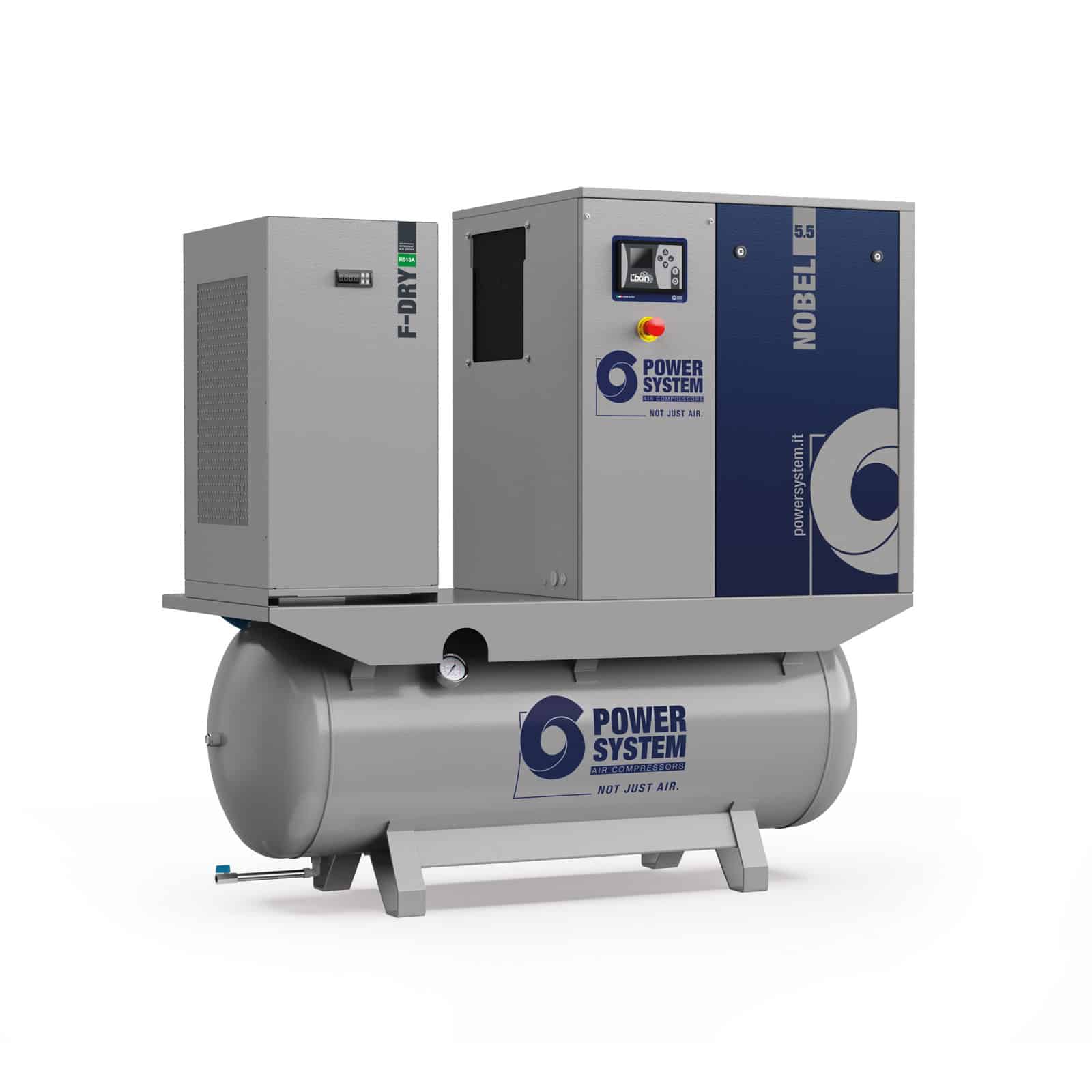

NOBEL-E 5.5-10-270 D
Screw compressor with direct drive transmission, complete with tank and dryer and dryer.

New
Air dryer
LOGIN Mini controller

Lubricated screw compressor with coaxial transmission. LOGIN electronic controller. Compact and silent, with dryer mounted on 270-litre tank

lubrificazione power system
Lubrication
Lubricated
aria-resa power system
Air outflow
700 l/min.
pressione-max power system
Max. pressure
10bar / 145psi
potenza power system
Power
5,5 kW
Contact your Sales representative
NOBEL-E 5.5-10-270 D Screw compressor with direct drive transmission, complete with tank and dryer and dryer.
NOBEL-E 5.5-10-270 D Screw compressor with direct drive transmission, complete with tank and dryer and dryer. dettaglio

Technical data

NOBEL-E 5.5-10-270 D
Product code
V91LQ92PWSB80
Lubrication
Lubricated
Air-end
FS26
Air receiver (l)
270
Power (kW)
5,5
Air outflow
l/min.
m3/min.
c.f.m.
700
0,7
25
Max. pressure
bar
p.s.i.
10
145
Nr. of stages
1
Sound level (dB(A))
*
62
Voltage / Frequency (Volt / Hz)
400/50
Connection (G)
1"
Controller
LOGIN
Type motor
Electric
Energy efficiency
IE3
Gross weight (kg)
300
Net weight (kg)
265
Packaging dimensions LxWxH (mm)
1720x750x1700
Net Dimensions LxWxH (mm)
1570x680x1490
*Sound pressure level measurement carried out at a distance of 7 metres.
