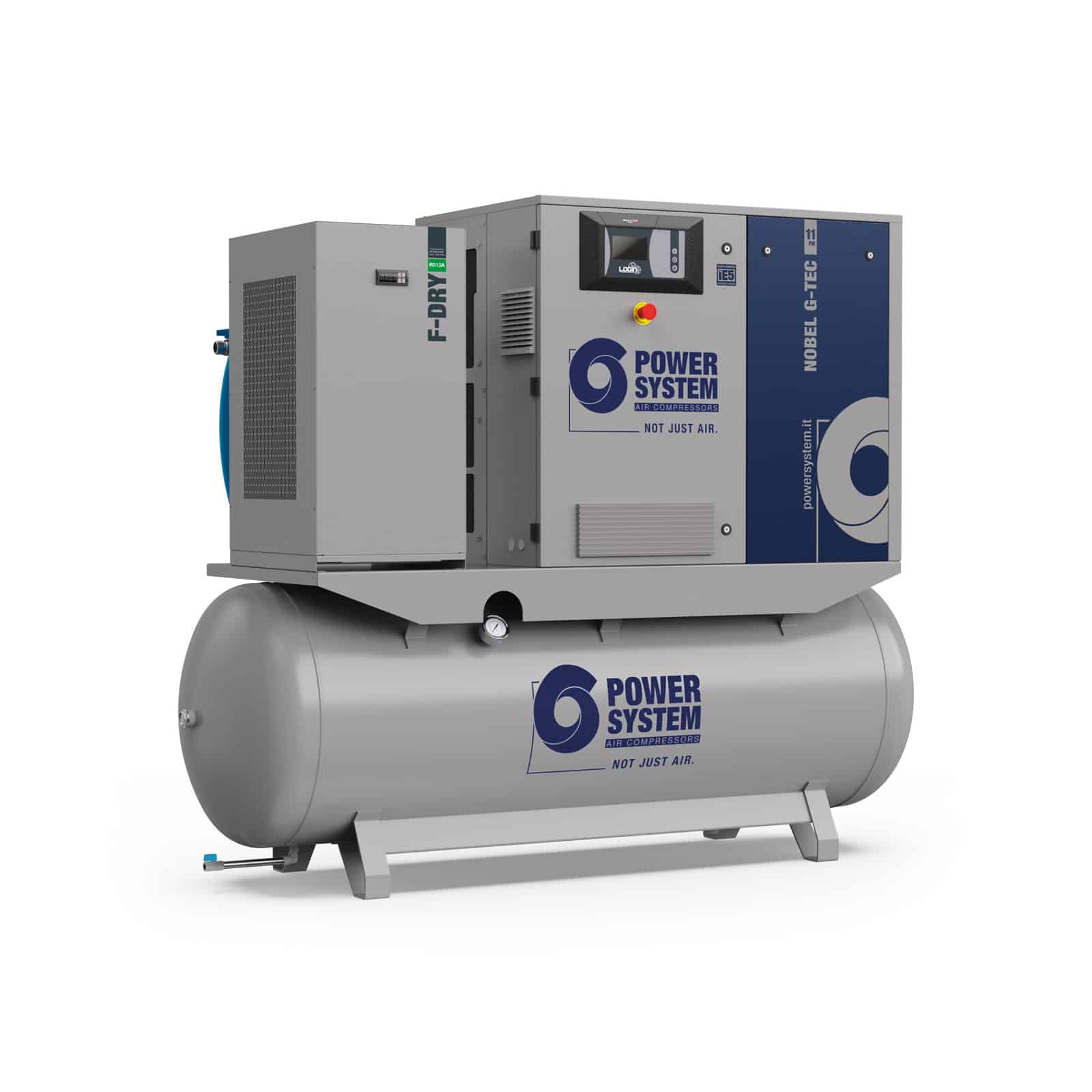

NOBEL-E 11-08-270 PM-DF (G-TEC)
Screw compressor with direct drive transmission, permanent magnet motor, complete with tank, dryer and filters.

New
Air dryer + filters
Permanent magnet
LOGIN controller

Lubricated screw compressor with coaxial transmission and inverter control. LOGIN electronic controller. With dryer complete with installed filter package and mounted on 500-litre tank

lubrificazione power system
Lubrication
Lubricated
aria-resa power system
Air outflow
620-1750 l/min.
pressione-max power system
Max. pressure
8bar / 116psi
potenza power system
Power
11 kW
Contact your Sales representative
NOBEL-E 11-08-270 PM-DF (G-TEC) Screw compressor with direct drive transmission, permanent magnet motor, complete with tank, dryer and filters.
NOBEL-E 11-08-270 PM-DF (G-TEC) Screw compressor with direct drive transmission, permanent magnet motor, complete with tank, dryer and filters. dettaglio
NOBEL-E 11-08-270 PM-DF (G-TEC) Screw compressor with direct drive transmission, permanent magnet motor, complete with tank, dryer and filters. altre applicazioni

Technical data

NOBEL-E 11-08-270 PM-DF (G-TEC)
Product code
V91HA97PWGB80
Lubrication
Lubricated
Air-end
FS50
Air receiver (l)
270
Power (kW)
11
Air outflow
l/min.
m3/min.
c.f.m.
620-1750
0.62-1.75
22-62
Max. pressure
bar
p.s.i.
8
116
Nr. of stages
1
Sound level (dB(A))
*
60
Voltage / Frequency (Volt / Hz)
400/50
Connection (G)
1"
Controller
LOGIN
Type motor
Electric
Energy efficiency
IE5
Gross weight (kg)
349
Net weight (kg)
309
Packaging dimensions LxWxH (mm)
1720x750x1700
Net Dimensions LxWxH (mm)
1950x690x1580
*Sound pressure level measurement carried out at a distance of 7 metres.

Download

catalogo powersystem
Catalogue
download powersystem download powersystem
dati tecnici powersystem
Technical data
download powersystem download powersystem
