home fini home fini Products home fini Rotary screw compressors home fini DARWIN-E SE 2.2-10 M

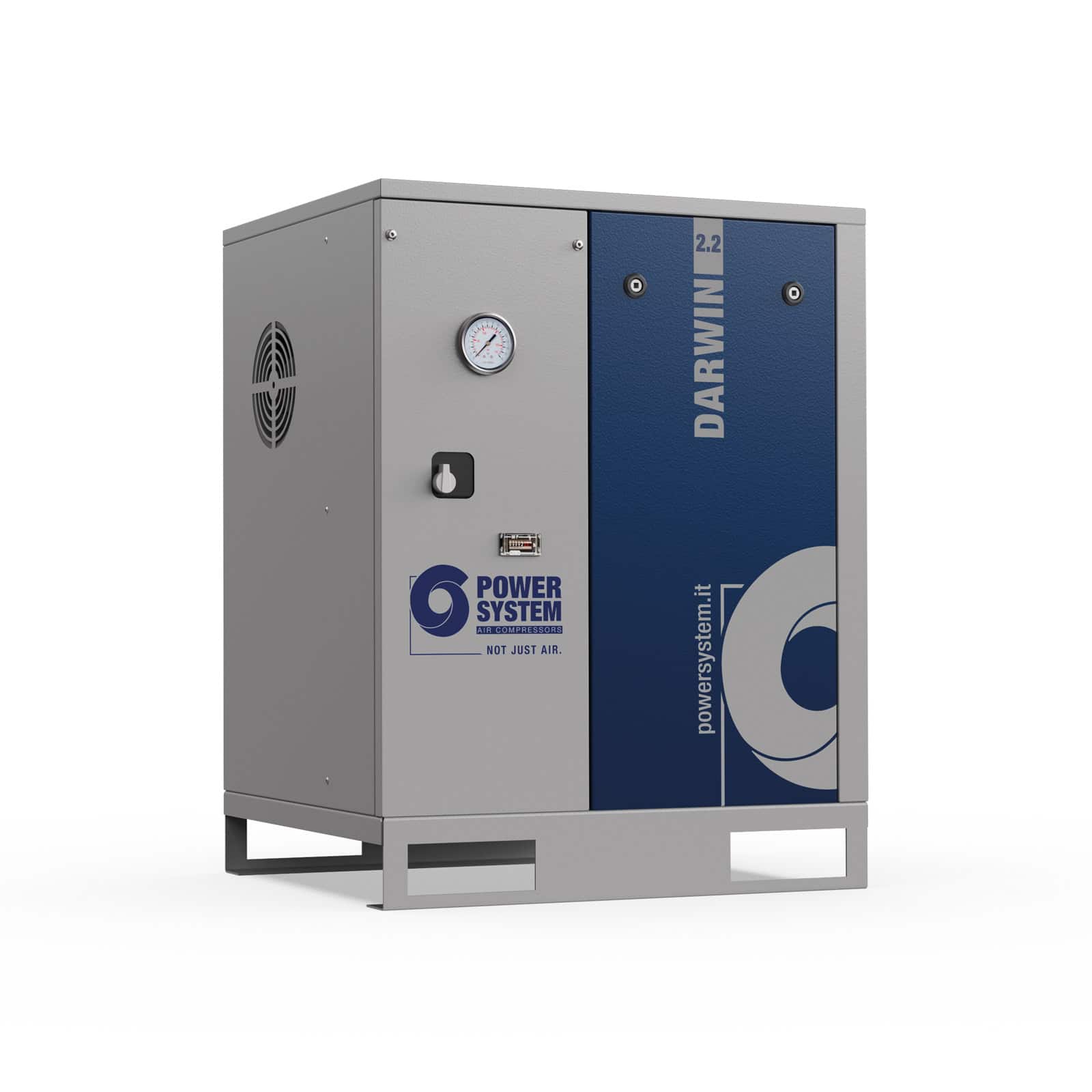

DARWIN-E SE 2.2-10 M
Screw compressor with belt transmission, compact and silent.

New
Electromechanical
Single-phase

Single-phase lubricated screw compressor with belt transmission with electromechanical control and direct starter. Soundproof cab in hot-dip galvanised sheet metal for maximum silence

lubrificazione power system
Lubrication
Lubricated
aria-resa power system
Air outflow
240 l/min.
pressione-max power system
Max. pressure
10bar / 145psi
potenza power system
Power
2,2 kW
Contact your Sales representative
DARWIN-E SE 2.2-10 M Screw compressor with belt transmission, compact and silent.

Technical data

DARWIN-E SE 2.2-10 M
Product code
V51ER60PWSA87
Lubrication
Lubricated
Air-end
FS14
Air receiver (l)
-
Power (kW)
2,2
Air outflow
l/min.
m3/min.
c.f.m.
240
0,24
8
Max. pressure
bar
p.s.i.
10
145
Nr. of stages
1
Sound level (dB(A))
*
58
Voltage / Frequency (Volt / Hz)
230/50
Connection (G)
1/2"
Type motor
Electric
Gross weight (kg)
99
Net weight (kg)
87
Packaging dimensions LxWxH (mm)
720x670x970
Net Dimensions LxWxH (mm)
600x530x780
*Sound pressure level measurement carried out at a distance of 7 metres.

Download

catalogo powersystem
Catalogue
download powersystem download powersystem
dati tecnici powersystem
Technical data
download powersystem download powersystem

Maybe it may also interest you

New
LOGIN Zero controller
Galvanized tank
Single-phase

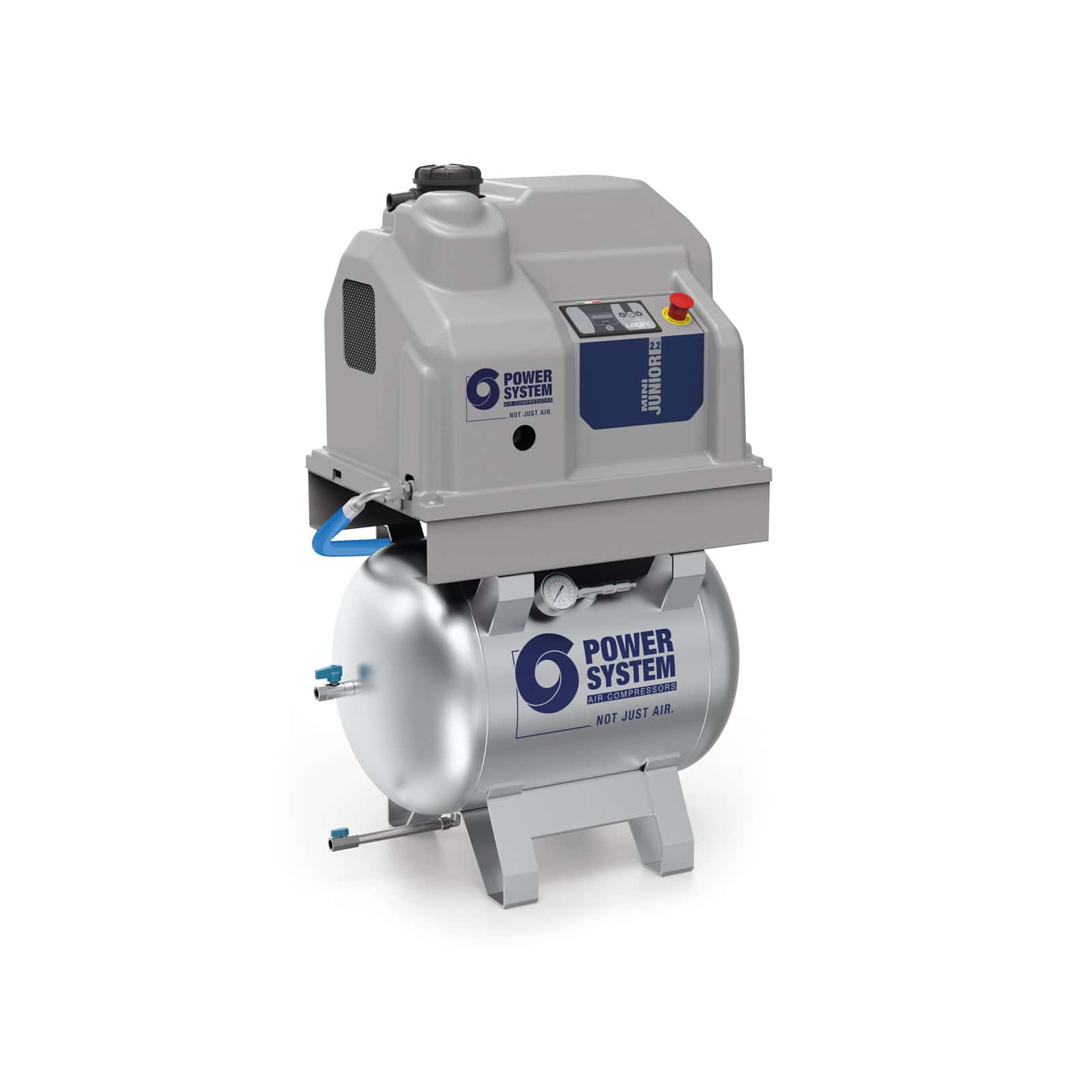

MiniJUNIOR-E 2.2-10-90z M The smallest and most compact direct drive transmission screw compressor, complete with tank.
MiniJUNIOR-E 2.2-10-90z M

The smallest and most compact direct drive transmission screw compressor, complete with tank.

icona power system
Power:
2,2 kW
icona power system
Air outflow:
261 l/min.
icona power system
Max. pressure:
10 bar
New
LOGIN Zero controller
Galvanized tank
Three-phase
MiniJUNIOR-E 2.2-10-90z The smallest and most compact direct drive transmission screw compressor, complete with tank.
MiniJUNIOR-E 2.2-10-90z

The smallest and most compact direct drive transmission screw compressor, complete with tank.

icona power system
Power:
2,2 kW
icona power system
Air outflow:
261 l/min.
icona power system
Max. pressure:
10 bar
New
LOGIN Zero controller
Single-phase
Less than 1 cubic meter

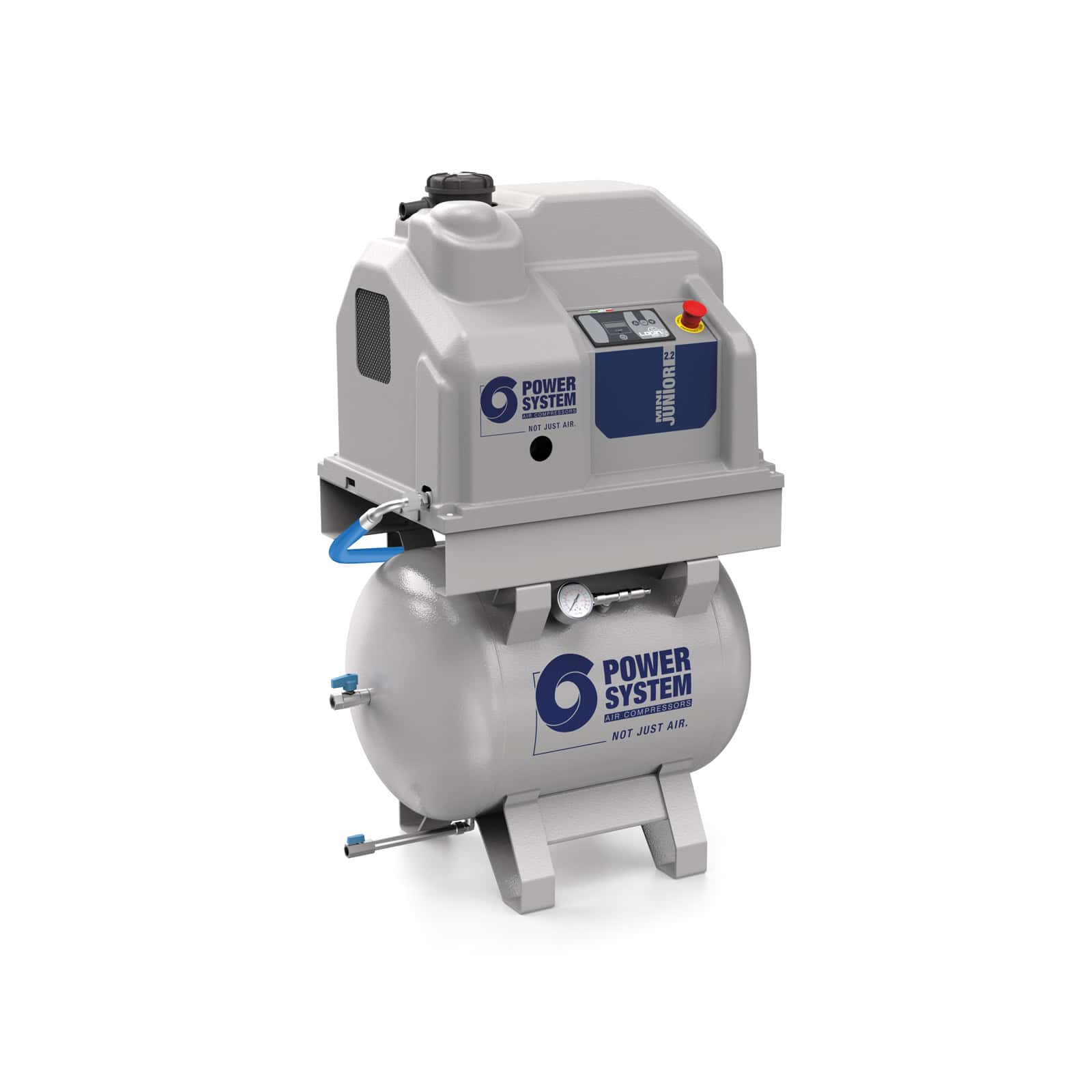

MiniJUNIOR-E 2.2-10-90 M The smallest and most compact direct drive transmission screw compressor, complete with tank.
