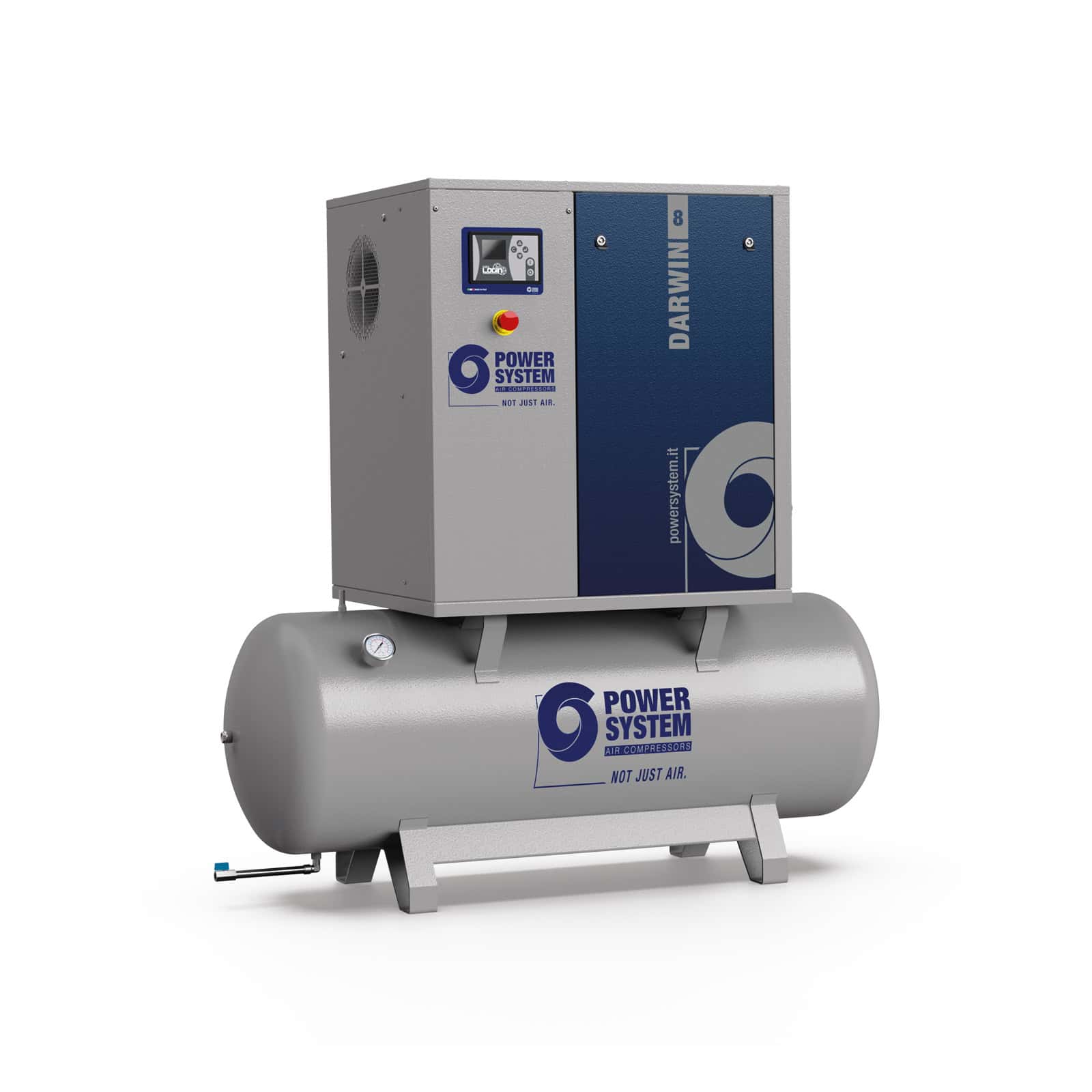

DARWIN-E 8-15-270
Screw compressor with belt transmission, complete with tank.

New
LOGIN Mini controller
High pressure
IE3

Three-phase belt-transmission lubricated screw compressor with LOGIN electronic controller and star/delta starter. Soundproof cab made of painted sheet metal and complete with 270-litre tank

lubrificazione power system
Lubrication
Lubricated
aria-resa power system
Air outflow
670 l/min.
pressione-max power system
Max. pressure
15bar / 218psi
potenza power system
Power
7,5 kW
Contact your Sales representative
DARWIN-E 8-15-270 Screw compressor with belt transmission, complete with tank.
DARWIN-E 8-15-270 Screw compressor with belt transmission, complete with tank. dettaglio
DARWIN-E 8-15-270 Screw compressor with belt transmission, complete with tank. altre applicazioni

Technical data

DARWIN-E 8-15-270
Product code
V91ED92PWSA80
Lubrication
Lubricated
Air-end
FS26
Air receiver (l)
270
Power (kW)
7,5
Air outflow
l/min.
m3/min.
c.f.m.
670
0,67
24
Max. pressure
bar
p.s.i.
15
218
Nr. of stages
1
Sound level (dB(A))
*
68
Voltage / Frequency (Volt / Hz)
400/50
Connection (G)
3/4"
Controller
LOGIN MINI
Type motor
Electric
Energy efficiency
IE3
Gross weight (kg)
335
Net weight (kg)
300
Packaging dimensions LxWxH (mm)
1720x750x1780
Net Dimensions LxWxH (mm)
1530x680x1490
*Sound pressure level measurement carried out at a distance of 7 metres.

Download

catalogo powersystem
Catalogue
download powersystem download powersystem
dati tecnici powersystem
Technical data
download powersystem download powersystem
