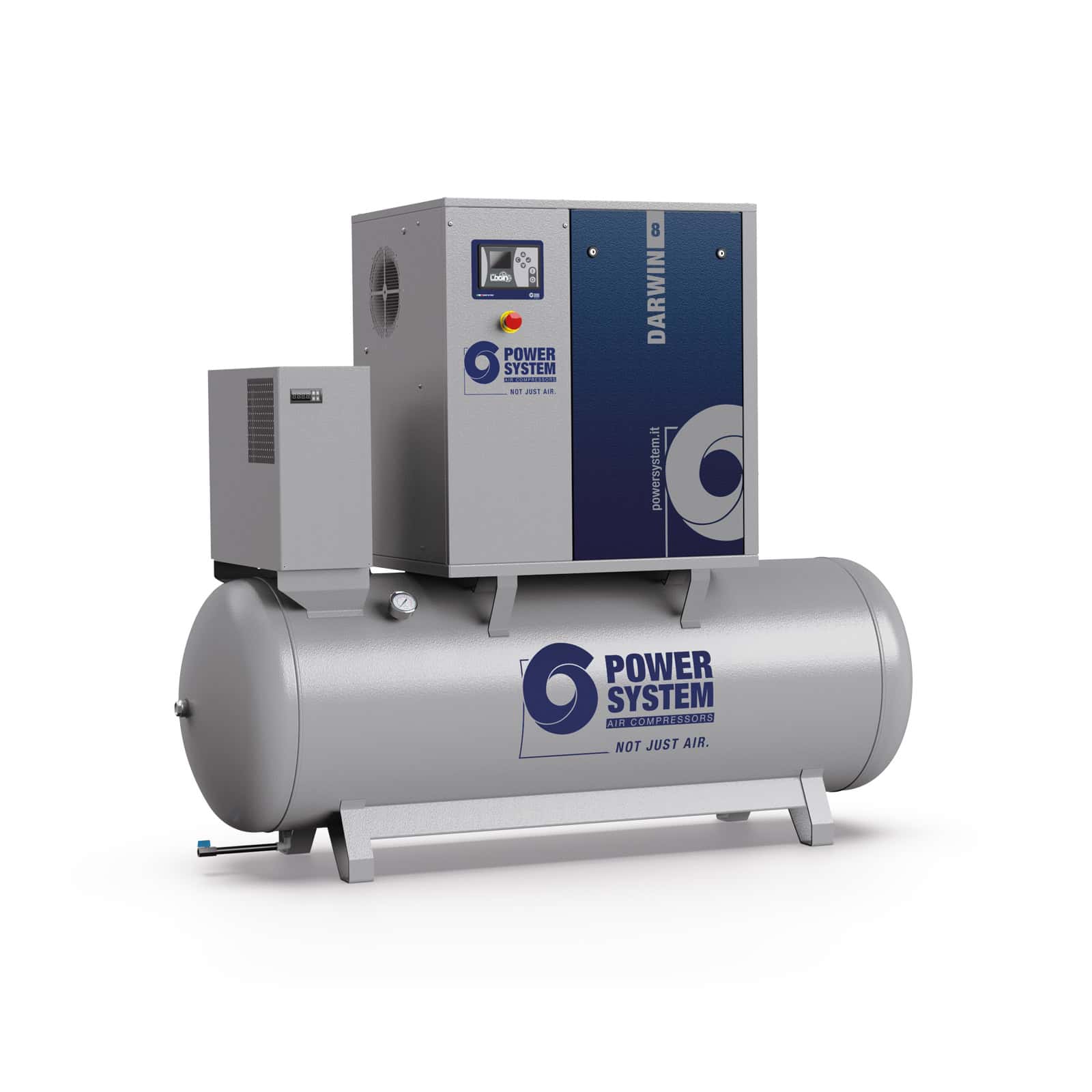

DARWIN-E 8-13-500 D
Screw compressor with belt transmission, complete with tank and dryer.

New
LOGIN Mini controller
High pressure
Air dryer

Three-phase belt-transmission lubricated screw compressor with LOGIN electronic controller and star/delta starter. Sheet metal soundproof cab complete with 500-litre tank and refrigerated dryer

plus fini
Read more
lubrificazione power system
Lubrication
Lubricated
aria-resa power system
Air outflow
700 l/min.
pressione-max power system
Max. pressure
13bar / 189psi
potenza power system
Power
7,5 kW
Contact your Sales representative
DARWIN-E 8-13-500 D Screw compressor with belt transmission, complete with tank and dryer.
DARWIN-E 8-13-500 D Screw compressor with belt transmission, complete with tank and dryer. dettaglio
DARWIN-E 8-13-500 D Screw compressor with belt transmission, complete with tank and dryer. altre applicazioni

Technical data

DARWIN-E 8-13-500 D
Product code
V83EC92PWSB80
Lubrication
Lubricated
Air-end
FS26
Air receiver (l)
500
Power (kW)
7,5
Air outflow
l/min.
m3/min.
c.f.m.
700
0,7
25
Max. pressure
bar
p.s.i.
13
189
Nr. of stages
1
Sound level (dB(A))
*
68
Voltage / Frequency (Volt / Hz)
400/50
Connection (G)
1"
Controller
LOGIN MINI
Type motor
Electric
Energy efficiency
IE3
Gross weight (kg)
402
Net weight (kg)
362
Packaging dimensions LxWxH (mm)
2070x800x1850
Net Dimensions LxWxH (mm)
1950x680x1580
*Sound pressure level measurement carried out at a distance of 7 metres.

Download

catalogo powersystem
Catalogue
download powersystem download powersystem
dati tecnici powersystem
Technical data
download powersystem download powersystem
