DARWIN-E 15-08
Screw compressor with belt transmission.

New
LOGIN Mini controller
IE3

Three-phase belt-transmission lubricated screw compressor with LOGIN electronic controller and star/delta starterer. Soundproof cab in hot-dip galvanised sheet metal for maximum silence

lubrificazione power system
Lubrication
Lubricated
aria-resa power system
Air outflow
2070 l/min.
pressione-max power system
Max. pressure
8bar / 116psi
potenza power system
Power
15 kW
Contact your Sales representative
DARWIN-E 15-08 Screw compressor with belt transmission.
DARWIN-E 15-08 Screw compressor with belt transmission. dettaglio
DARWIN-E 15-08 Screw compressor with belt transmission. altre applicazioni

Technical data

DARWIN-E 15-08
Product code
V60EM92PWSA87
Lubrication
Lubricated
Air-end
FS26
Air receiver (l)
-
Power (kW)
15
Air outflow
l/min.
m3/min.
c.f.m.
2070
2.07
73
Max. pressure
bar
p.s.i.
8
116
Nr. of stages
1
Sound level (dB(A))
*
68
Voltage / Frequency (Volt / Hz)
400/50
Connection (G)
3/4"
Controller
LOGIN MINI
Type motor
Electric
Energy efficiency
IE3
Gross weight (kg)
235
Net weight (kg)
220
Packaging dimensions LxWxH (mm)
940x770x1150
Net Dimensions LxWxH (mm)
830x680x960
*Sound pressure level measurement carried out at a distance of 7 metres.

Download

catalogo powersystem
Catalogue
download powersystem download powersystem
dati tecnici powersystem
Technical data
download powersystem download powersystem

Maybe it may also interest you

New
High pressure
Variable speed
LOGIN controller
NOBEL-E 15-13-500 PM D Screw compressor with direct drive transmission, complete with tank and dryer.
NOBEL-E 15-13-500 PM D

Screw compressor with direct drive transmission, complete with tank and dryer.

icona power system
Power:
15 kW
icona power system
Air outflow:
585 / 1600 l/min.
icona power system
Max. pressure:
13 bar
New
High pressure
Variable speed
LOGIN controller
NOBEL-E 15-13-500 PM Screw compressor with direct drive transmission, complete with tank.
NOBEL-E 15-13-500 PM

Screw compressor with direct drive transmission, complete with tank.

icona power system
Power:
15 kW
icona power system
Air outflow:
585 / 1600 l/min.
icona power system
Max. pressure:
13 bar
New
Air dryer + filters
Permanent magnet
LOGIN controller

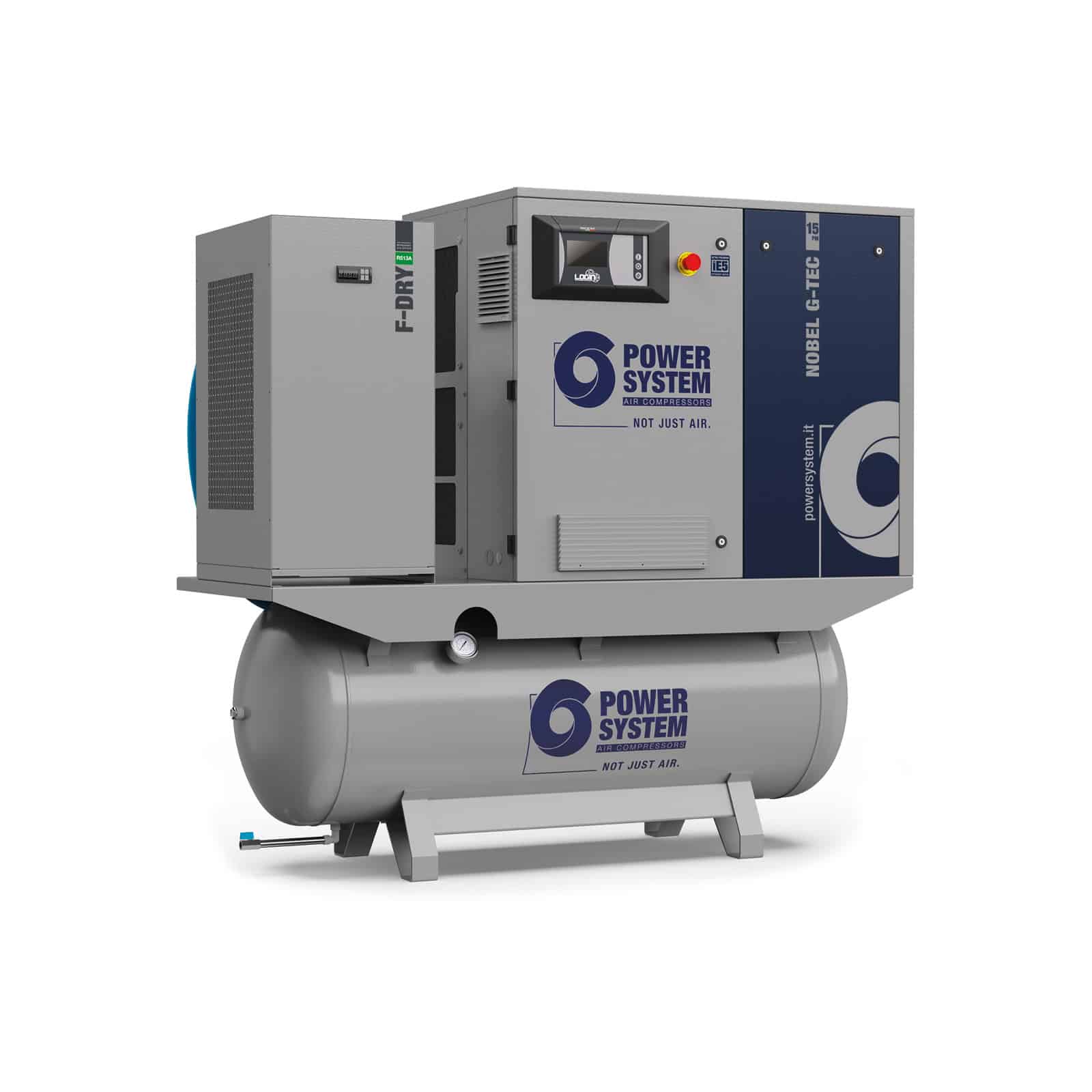

NOBEL-E 15-10-270 PM-DF (G-TEC) Screw compressor with direct drive transmission, permanent magnet motor, complete with tank, dryer and filters.
